1303

Cause

Paper is jammed inside the machine at the transport unit.

Action

If you can see the jammed paper at the front tray, or you cannot see the paper either at the paper output slot or at the front tray, remove the paper from the transport unit.

Remove the paper following the procedure below.

Watch the movie (Windows)

Watch the movie (Mac)

Note

  • If you need to turn off the machine to remove jammed paper during printing, press the Stop button to cancel print jobs before turning off the machine.

  1. Turn the machine off, then unplug the power cord.

  2. Stand the machine with the right side facing down.

    If you can see the jammed paper at the front tray, stand the machine with the front tray open.

    Important

    • When you stand the machine, confirm that the document cover is closed.

    • Stand the machine on a wide and flat surface such as a desk.

    • When you stand the machine, hold it securely and be careful not to hit it on a hard object.

  3. If the protective material for the transport unit remains attached, remove it.

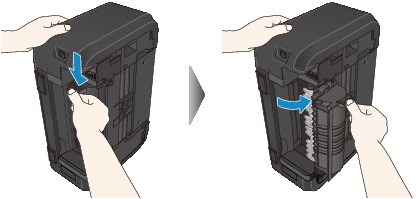

  4. Push the open lever to open the transport unit.

    When you open the transport unit, support the machine with your hand so that it does not fall down.

  5. Pull out the jammed paper slowly.

    When you pull the jammed paper, support the machine with your hand so that it does not fall down.

    Note

    • If the paper is rolled up and it is difficult to remove, grasp the edges of the paper, then remove the jammed paper.

    • If you cannot remove the jammed paper from the transport unit, close the transport unit, take back the machine in original position, then open the paper output cover to remove the paper.

      Paper Is Jammed inside the Machine

  6. Close the transport unit.

    Note

    • After you close the transport unit, take back the machine in original position at once.

  7. Plug the machine back in and turn the machine back on.

  8. Reload the paper.

    All print jobs in the queue are canceled. Reprint if necessary.

If you cannot remove the paper or the paper tears inside the machine, or if the paper jam error continues after removing the paper, contact the service center.
